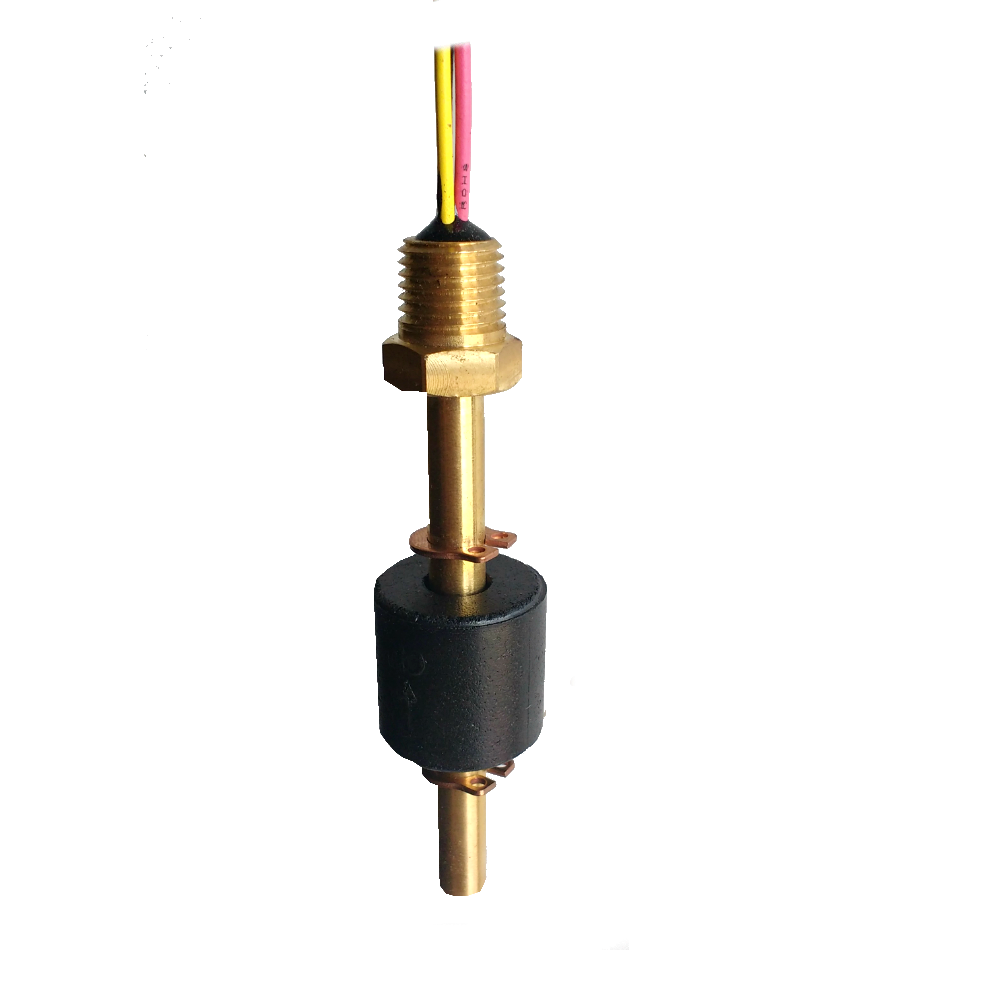

Name: || Temperature Level Switch || Normally Closed || TLS-52-112
SKU: TLS-52-112
Availability: InStock

|| Temperature Level Switch || Normally Closed || TLS-52-112

Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

This dual function temp/level float switch combines a float operated level switch and a snap action thermostat for temperature switching. The temperature can be specified either normally open (close on rise) or normally closed (open on rise). Thermostat settings available from 45°C to 150°C in 5C increments (5°C). Temp switch contact ratings 2 AMPS@120VAC / 2 AMPS @ 24VDC

PDF

Part #	Reed Switch	Float Dry State	Price
TLS-52-112	70 VA SPST	N.C.	$47.00

Operating Temp	Maximum Pressure	Float Spec. Gravity
180°F water (-40°F to 230°F oil)	150 PSI	.47

Thread	Float	Lead Wires
1/4″ npt	1.0″ diameter	20 AWG PVC 24″

Additional information

Weight	0.13 lbs
Dimensions	2.2 × 2.2 × 6.2 in
Temperature	45°C N.C., 45°C N.O., 50°C N.C., 50°C N.O., 55°C N.C., 55°C N.O., 60°C N.C., 60°C N.O., 65°C N.C., 65°C N.O., 70°C N.C., 70°C N.O., 75°C N.C., 75°C N.O., 80°C N.C., 80°C N.O., 85°C N.C., 85°C N.O., 90°C N.C., 90°C N.O., 95°C N.C., 95°C N.O., 100°C N.C., 100°C N.O., 105°C N.C., 105°C N.O., 110°C N.C., 110°C N.O., 115°C N.C., 115°C N.O., 120°C N.C., 120°C N.O., 125°C N.C., 125°C N.O., 130°C N.C., 130°C N.O., 135°C N.C., 135°C N.O., 140°C N.C., 140°C N.O., 145°C N.C., 145°C N.O., 150°C N.C., 150°C N.O.
