Description

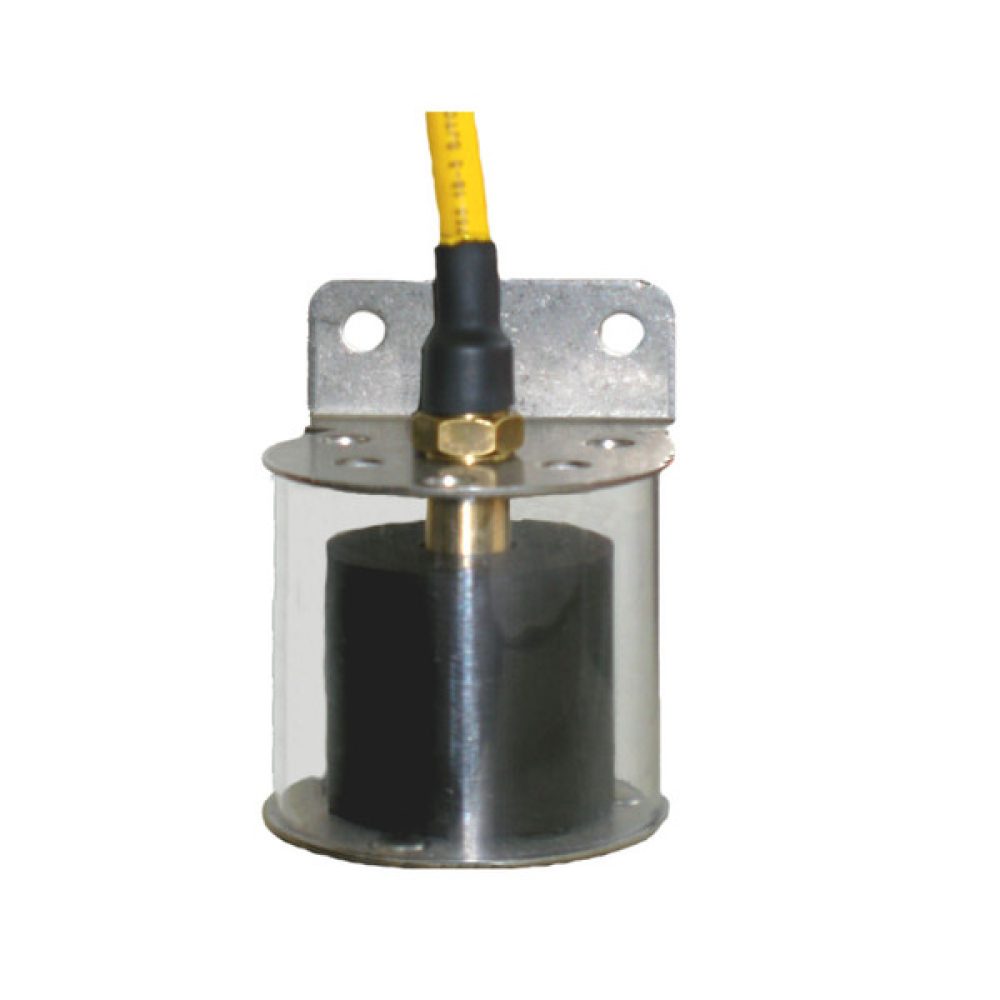

This is a rugged, compact, slosh shielded bilge water alarm switch for use on vessels of all sizes. The stainless steel bracket can be mounted at your desired level. It’s built for harsh conditions and is compatible with seawater and a variety of fuels, gasoline, hydraulic and lube oils, and provide stable level detection in highly contaminated, turbulent liquids.
| Part # | Reed Switch | Dry State | Price |
| BLS-271 | 100 VA SPDT | N.O. & N.C. | $120.00 |
Dry State: The condition of the reed switch when the tank is dry.
SPDT: Single Pole Double Throw
| Operating Temp | Maximum Pressure | Float Spec. Gravity |
| -40°F to 180°F (230°F in oil) | 150 PSI | .40 |
| Thread | Float | Lead Wires |
| N/A | 1.90″ diameter | 18 AWG Seoprene 105 SJE00W 6ft |
